FAR-EAST QUARTZ MOVEMENTS
Very cost effective: It saves time and money - you can re-use the original hands.

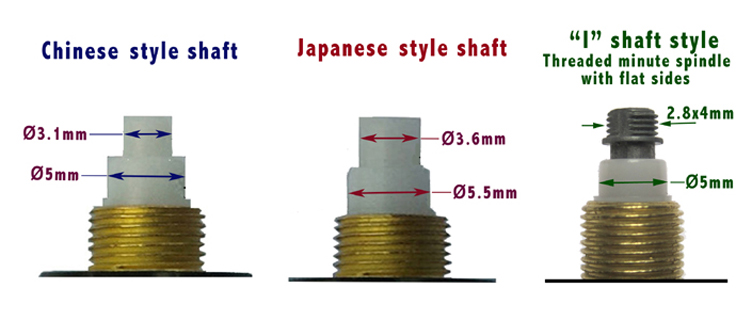

Movements identification chart
Please note:
A) It is advisable to have in stock some spare seconds-hands/caps, as sometimes the original one may not fit
B) If the original movement-holding nut is different from the one supplied (i.e. looks similar to the European one),
it is advisable to use the original one, as it alters the effective length of the shaft
C) Please enquire about the available hands, if needed

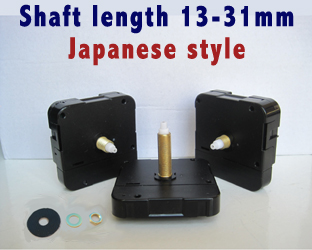

Japanese-style push-fit movements

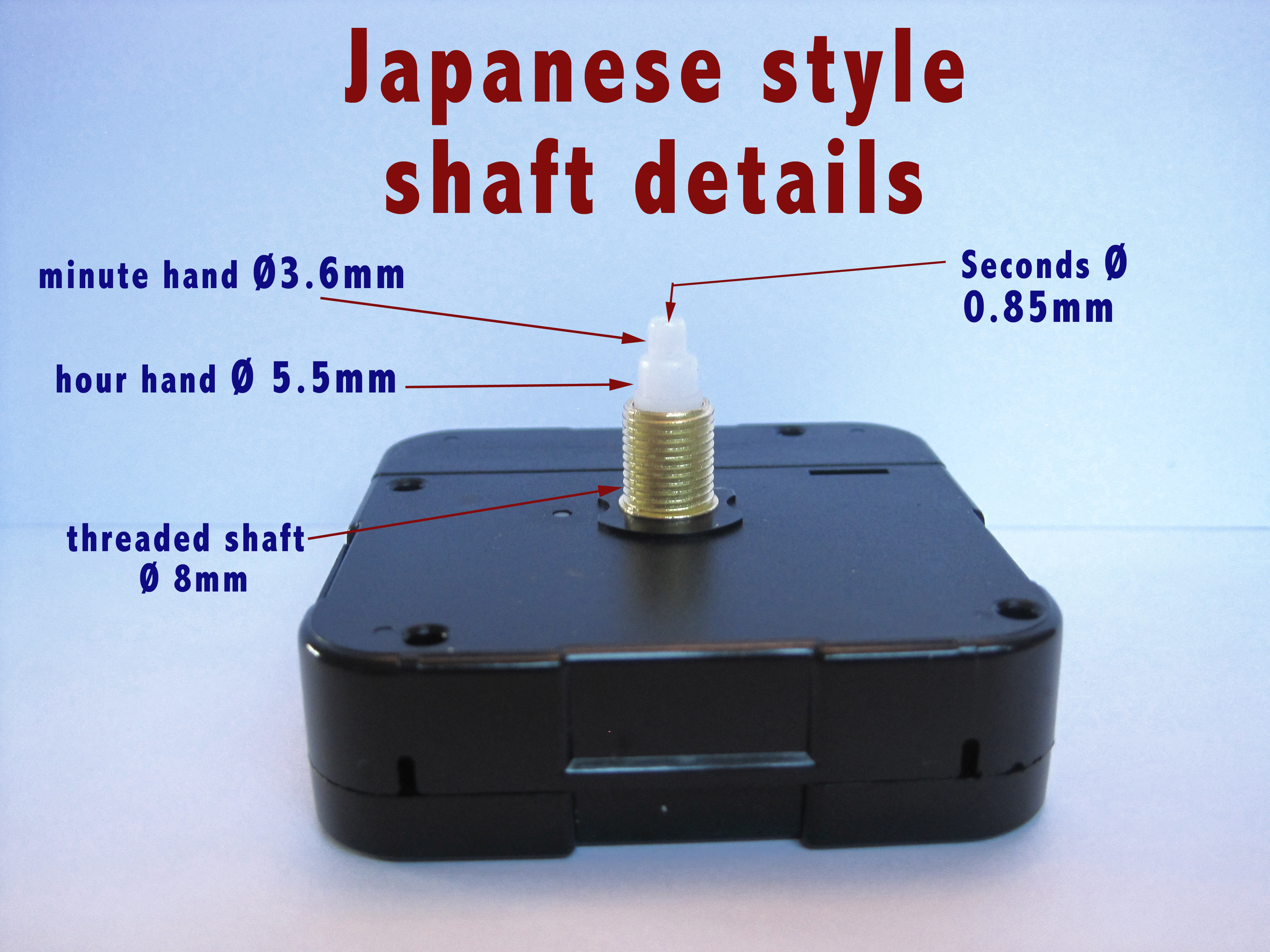

JAPANESE-STYLE QUARTZ MOVEMENTS (i.e. for push-fit hands, Ø 5.5mm & 3.6mm) All supplied with rubber washer, metal washer and exagonal nut |
||
| 9mm snap-fit - Standard Mechanism | £3.25 |  |
| 9mm snap-fit - Silent | £3.50 | |
| 12.5mm - Silent | £3.50 | |
| 13mm shaft - Standard | £2.99 |
|
| 14.5mm - Silent | £3.50 | |
| 15mm shaft - Standard | £2.99 |
|
| 17mm shaft - Standard | £2.99 |
|
| 17mm shaft - High Torque | £3.50 |
|
| 20mm shaft - Standard Mechanism | £2.99 |
|
| 20mm shaft - High Torque | £3.50 |
|
| 22mm - High Torque | £3.50 | |
| 28mm shaft - High Torque | £3.50 |
|
| 31mm Shaft - standard | £3.25 | |
| 31mm shaft - High torque | £3.50 |
|
| JAPANESE-STYLE PENDULUM MOVEMENTS | ||
| 13mm - pendulum movement | £3.50 |
|
| 15mm - pendulum movement | £3.50 |
|
| 17mm - pendulum movement | £3.50 |
|
| ACCESSORIES FOR JAPANESE-STYLE MOVEMENTS | ||
| RED seconds-hand, 90mm long | £0.30 |
|
| BLACK seconds-hand, 90mm long | £0.30 |
|
| CAP - (No seconds-hand) | £0.30 |
|
| Extra rubber washers | £0.30 |
|
| Hanging hook | £0.45 |
|
| I have many hands to fit this model - Please inquire | ||
|
||

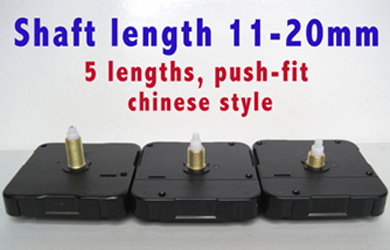

Chinese-style push-fit movements

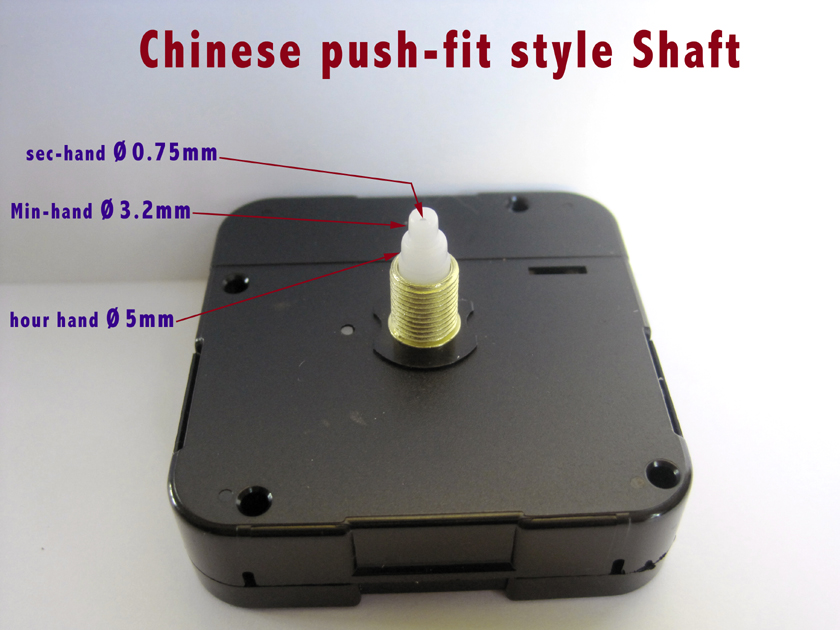

CHINESE-STYLE QUARTZ MOVEMENTS (i.e. for push-fit hands, Ø 5mm & 3.1mm) All supplied with rubber washer, metal washer and exagonal nut |
||
| 9mm snap-fit - Standard mechanism | £3.25 | |
| 9mm snap-fit - Silent | £3.50 | |
| 11mm shaft - standard | £2.99 |
|
| 12.5mm Shaft - Silent | £3.50 | |
| 13mm shaft -standard | £2.99 |
|
| 14.5mm snap-fit - Silent | £3.50 | |
| 15mm shaft - standard | £2.99 |
|
| 17mm shaft - Standard | £2.99 |
|
| 17mm shaft - High Torque | £3.50 |
|
| 20mm shaft - Standard mechanism | £2.99 | |
| 20mm shaft - Silent | £3.50 | |
| 23mm shaft - High-torque | £3.50 | |
| CHINESE-STYLE PENDULUM MOVEMENTS | ||
| 13mm - pendulum movement | £3.75 | |
| 15mm - pendulum movement | £3.75 | |
| 17mm - pendulum movement | £3.75 |
|
| 23mm - pendulum movement | £3.75 | |
| ACCESSORIES FOR CHINESE-STYLE MOVEMENTS | ||
| RED seconds-hand, 90mm long | £0.30 | |
| RED seconds-hand, 63mm long (finer) | £0.30 | |
| BLACK seconds-hand, 90mm long | £0.30 | > |
| CAP - (No seconds-hand) | £0.30 | > |
| Extra rubber washers | £0.30 | |
| Hanging Hook | £0.45 | |
| I have many hands that fit this model - Please inquire | ||
|
|
||

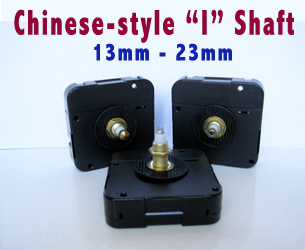

Chinese-style "I" shaft movements

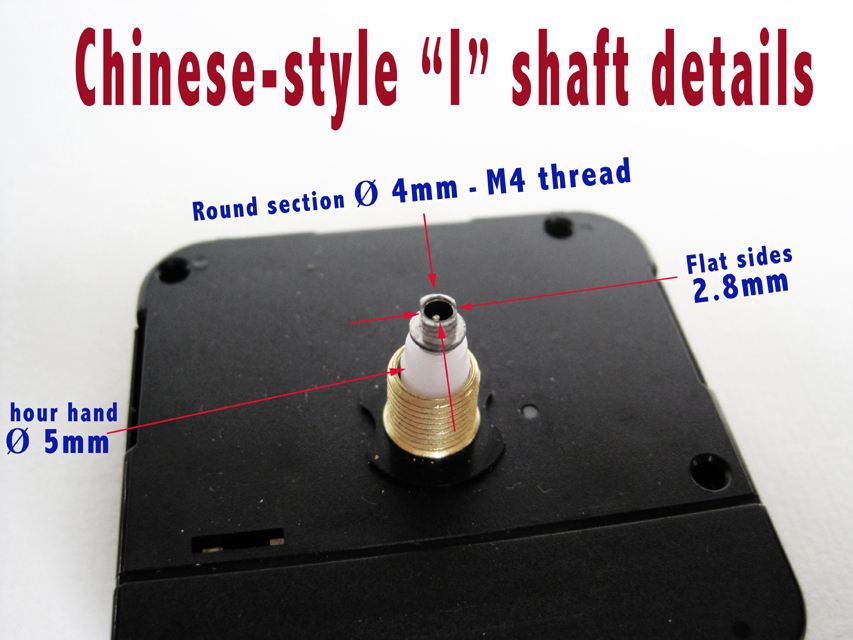

CHINESE-STYLE "I" SHAFT MOVEMENTS (Hands' fittings similar to UTS movements, but measuring 5mm and 4x2.8mm) All supplied with rubber washer, metal washer, exagonal center nut and minute-hand nut |
||
| 13mm shaft | £2.99 | |
| 15mm shaft | £2.99 |
|
| 17mm shaft | £2.99 |
|
| 17mm shaft - High Torque | £3.50 | |
| 17mm shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 20mm shaft | £2.99 | |
| 20mm shaft - High Torque | £3.50 | |
| 20mm shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 23mm Shaft - High Torque | £3.50 | |
| 23mm Shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 28mm Shaft - High Torque | £3.50 | |
| 28mm Shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 31mm Shaft - High Torque | £3.50 | |
| 31mm Shaft - High Torque, with minute shaft "extension" | £4.00 | |
| CHINESE-STYLE "I" SHAFT PENDULUM MOVEMENTS | ||
| 13mm "I" shaft - pendulum movement | £3.75 | |
| 15mm "I" shaft - pendulum movement | £3.75 | |
| 17mm "I" shaft High-Torque pendulum movement | £3.99 | |
| 17mm "I" shaft High-Torque with minute-shaft extension | £4.50 | |
| 23mm "I" shaft High-Torque pendulum movement | £3.99 | |
| 23mm "I" shaft High-Torque with minute-shaft extension | £4.50 | |
|
ACCESSORIES FOR CHINESE-STYLE "I" SHAFT MOVEMENTS |
||
| RED seconds-hand, 90mm long | £0.30 | |
| RED seconds-hand, 63mm (Finer) | £0.30 | |
| BLACK seconds-hand, 90mm long | £0.30 | |
| Closed nut - (No seconds-hand) | £0.30 | |
| Open nut - (For seconds-hand) | £0.20 |
|
| Extra rubber washers | £0.30 |
|
| Hanging Hook | £0.45 |
|
| I have hands to fit this model - Please inquire | ||
|
|
||
Pendulum Module
It converts any ordinary movement (56x56x16mm) into a pendulum clock.
It accepts European, Chinese, Japanese or US movements
Mainly used to make-up unusual sizes or high-torque pendulum mechanisms
| Pendulum Module | £2.99 |
|
